Brokers

Overview

The Brokers page is where you link your trading accounts to TraderFrame. Once connected, your bots can execute trades and your performance data syncs automatically. URL: /brokers

Page Layout

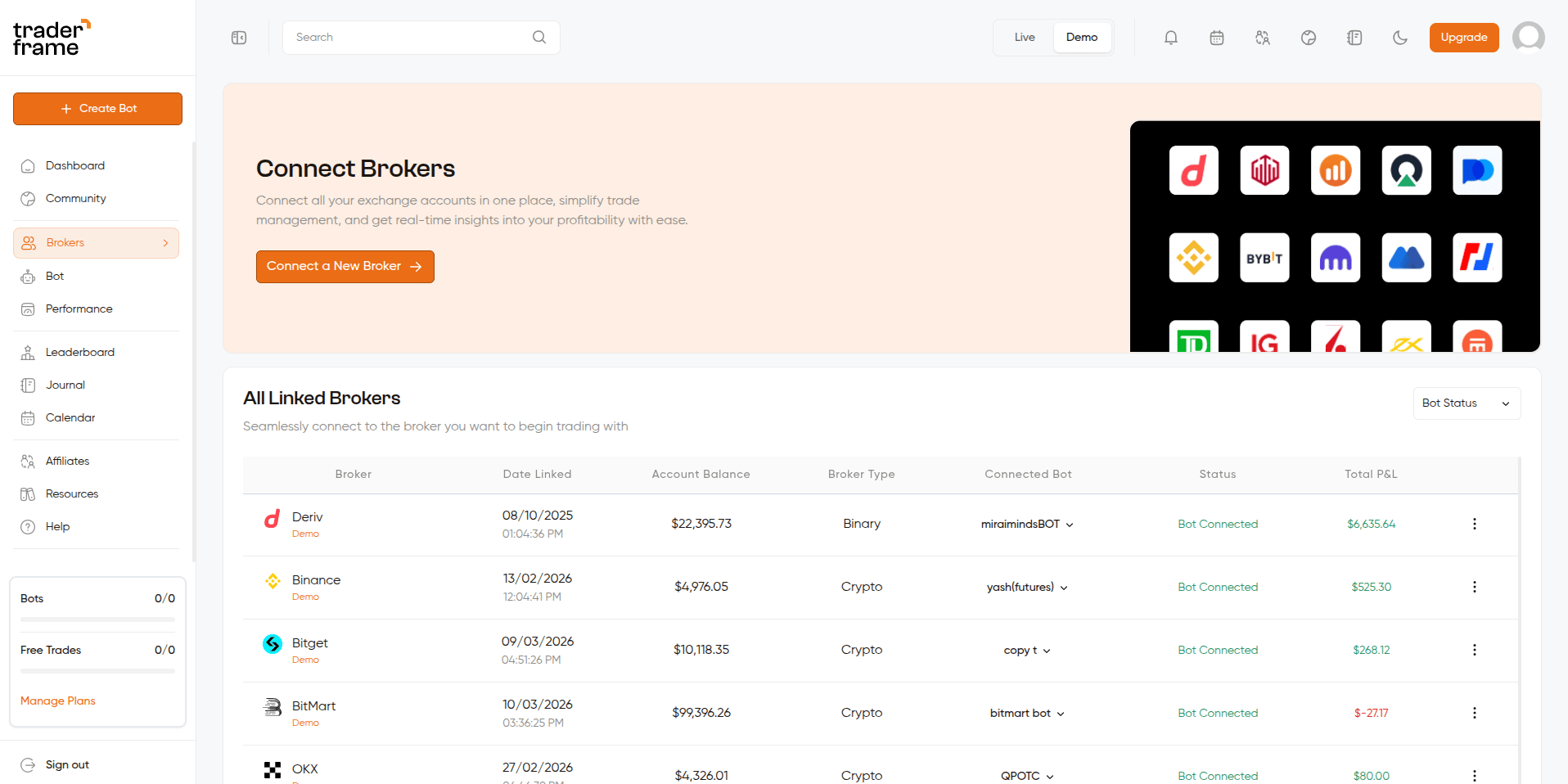

Brokers page — full view with connect banner and linked brokers table

The page has two sections:

A Connect Brokers banner at the top with a “Connect a New Broker” button and a preview of supported broker logos
The All Linked Brokers table below, showing all your connected accounts

Supported Brokers

Clicking “Connect a New Broker” opens the broker selection sidebar, which groups all supported brokers into four categories:

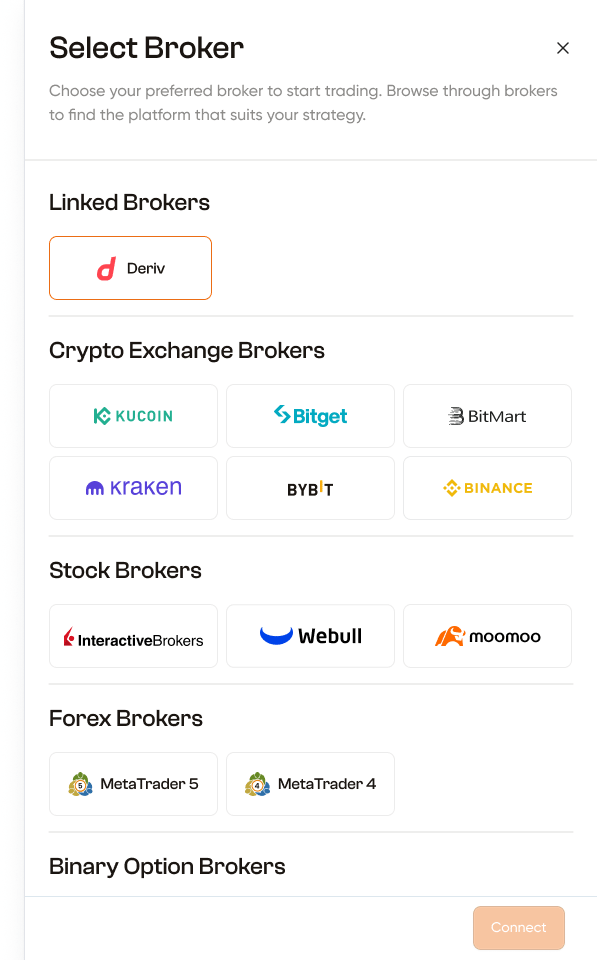

Broker selection sidebar showing all categories

Linked Brokers

Already-connected accounts appear at the very top of the sidebar for quick re-selection.

Crypto Exchange Brokers

Broker	Connection Method
Binance	API Key + Secret Key
KuCoin	OAuth redirect
BitMart	OAuth redirect
Bitget	Demo: API keys / Real: OAuth redirect
OKX	OAuth redirect (with account mode selection)

Forex Brokers

Broker	Notes
MetaTrader 5	Generates an EA Token — you install it in your MT5 platform
MetaTrader 4	Generates an EA Token — you install it in your MT4 platform

Binary Option Brokers

Broker	Notes
Deriv	API Token connection

Connect Broker Flow (Full)

Connecting a broker goes through a phone verification check, then a sidebar panel. The exact steps inside the sidebar depend on which broker you select.

Step 1 — Phone Verification Check

Before the connect sidebar opens, the app checks if you have a verified phone number:

Click "Connect a New Broker"
        │
        ├── Phone number verified AND/OR at least one broker already linked?
        │         │
        │         └── YES → Open Connect Broker Sidebar directly
        │
        └── No phone number + no broker linked yet?
                  │
                  └── Show Phone Verification Modal
                            │
                            ├── User verifies phone → Open Connect Broker Sidebar
                            └── User cancels → Close, nothing happens

The sidebar opens with grouped sections of available brokers. Linked brokers appear at the top for easy re-selection. Click on any broker card to select it (card gets an orange border). Then click Connect in the footer.

Step 3 — Broker-Specific Connection (varies by broker)

After clicking Connect, the sidebar switches to the broker’s own connection view:

Deriv — API Token

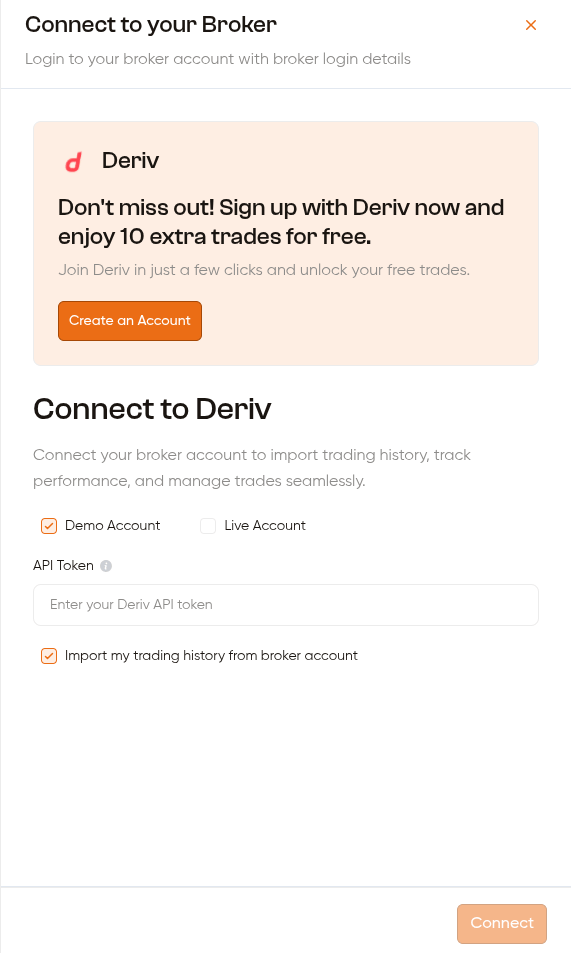

Deriv connection form — API token field and account mode

Optional: "Create an Account" link to sign up for Deriv
Select Account Mode: Demo Account or Live Account
Enter API Token (min 10 characters)
Toggle: Import my trading history from broker account (on by default)
Click Connect → success screen

Binance — API Keys

Enter API Key (min 20 characters)
Enter Secret Key (min 20 characters)
Select Account Mode: Demo or Real
Select Trading Type: Spot or Futures
Toggle: Import Trading History
Click Connect → success screen

KuCoin — OAuth Redirect

Click Connect →
  Page redirects to KuCoin authorization page
  User approves →
  Redirected back to /brokers?code=...
  App auto-completes connection in the background
  URL cleaned up, broker list refreshed

BitMart — OAuth Redirect

Same flow as KuCoin — full page redirect to BitMart,
returns to /brokers with ?code= param,
app auto-connects and refreshes the broker list

Bitget — Mode-Dependent

Select Account Mode first:
  ├── Demo → Enter API Key + Secret Key + Passphrase → Connect
  └── Real  → OAuth redirect (same as KuCoin/BitMart flow)

OKX — Account Mode Selection + OAuth

Select Account Mode: Demo or Real
Click Connect →
  OAuth redirect to OKX authorization page
  Returns to /brokers with ?code= param
  App auto-connects and refreshes broker list

MetaTrader 5 / MetaTrader 4 — EA Token

Click Connect →
  Backend generates an EA (Expert Advisor) Token
  Token is displayed in the sidebar
  User copies the token and installs it in their MT5/MT4 platform
  Click Done (or Next Step if connecting during bot setup)

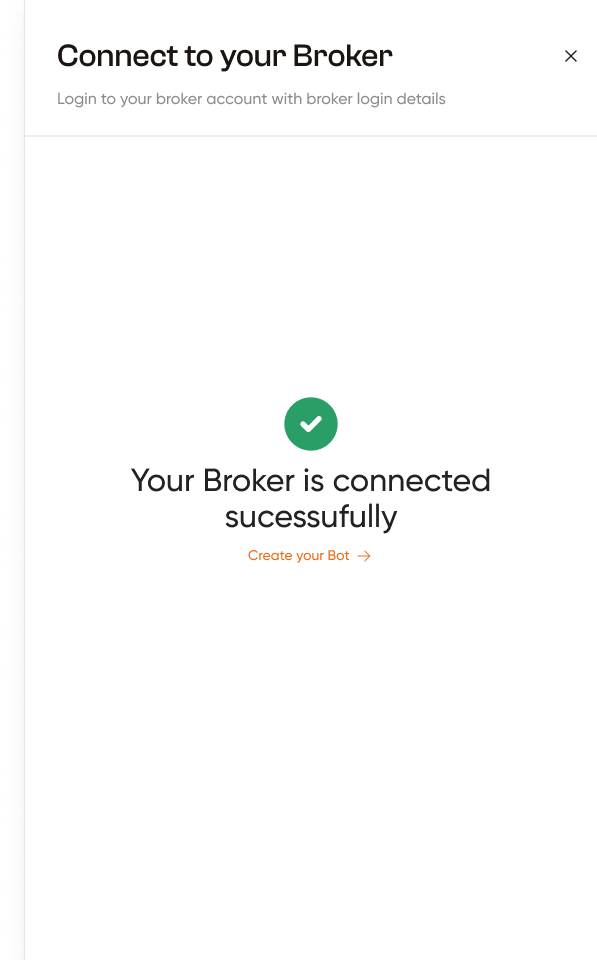

Step 4 — Success Screen

After a successful connection (Deriv, Binance, Bitget demo), a success screen is shown inside the sidebar:

"Your Broker is connected successfully"
        │
        ├── Coming from bot setup (botId in URL)?
        │         └── "Next Step" button → opens Bot Settings panel
        │
        └── Regular connection (no botId)?
                  └── "Create your Bot →" link + sidebar closes, broker list refreshes

For OAuth brokers (KuCoin, BitMart, Bitget real, OKX), the success happens automatically after the redirect — no separate success screen is shown.

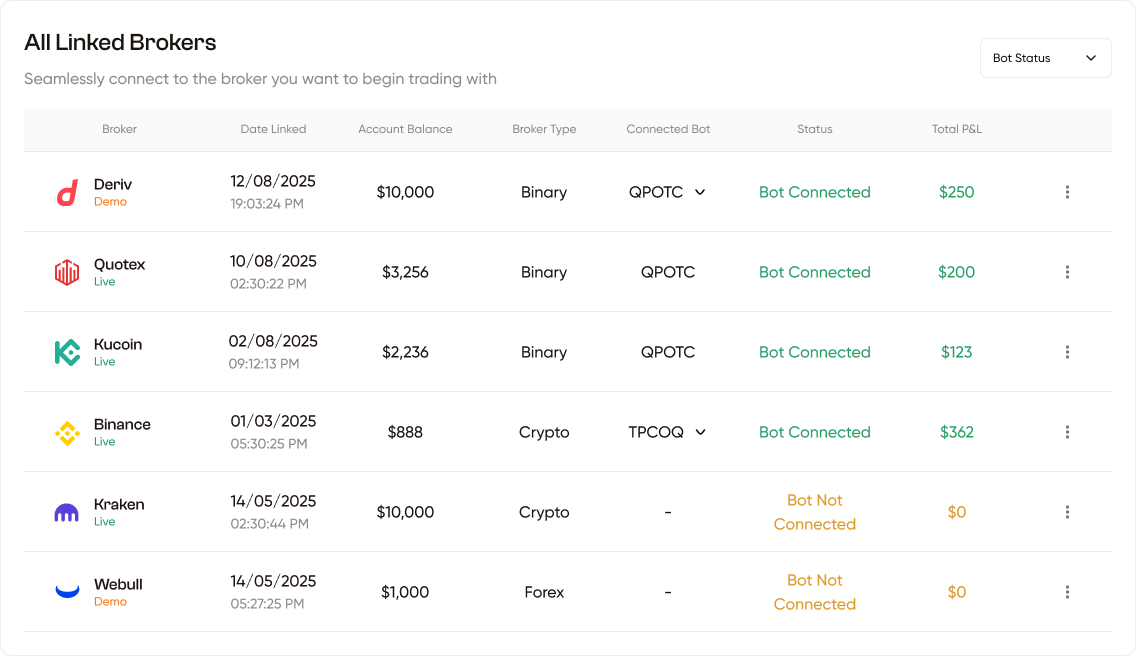

All Linked Brokers Table

Once brokers are connected, they appear in the All Linked Brokers table.

Table Columns

Column	Description
Broker	Broker logo + name + account mode (orange = demo, green = live)
Date Linked	Date and time the broker was connected
Account Balance	Current balance in the broker account
Broker Type	Binary, Crypto, or Forex
Connected Bot	Dropdown to select which bot is linked to this broker. Shows `-` if no bot connected
Status	`Bot Connected` (green) / `Bot Not Connected` (orange) / `Auth Failed` (red)
Total P&L	Total profit/loss from this broker account
Actions (⋯)	Dropdown menu with available actions

Bot Status Filter

A Bot Status dropdown at the top-right filters the table:

All
Bot Connected
Bot Not Connected
Auth Failed

Action	When Available	What It Does
View Bot	When status is `Bot Connected`	Navigates to `/bot/[botId]`
Connect Bot	When status is `Bot Not Connected`	Creates a new bot, links it to this broker, navigates to `/create-bot?botId=...`
Unlink Broker	When status is `Bot Connected`	Opens Unlink Broker modal — removes the bot-broker link only
Delete Broker	Always	Opens Delete Broker modal — permanently removes the broker connection

Unlink vs Delete

Action	Effect
Unlink Broker	Removes the connection between the bot and broker. The broker account stays. The bot stops trading but is not deleted.
Delete Broker	Permanently removes the broker account from TraderFrame. All associated data is deleted. The bot remains but has no broker.

Empty State

If no brokers are connected, the table shows:

“No Brokers Connected"
"You have no broker connected to your account at the moment. Connect to the broker to start your trading.”

With a “Connect a New Broker →” button that triggers the same connect flow.
